Updated cut to length and slitting line for processing metal coil with thickness 0,4-3,0 mm

29 june 2018

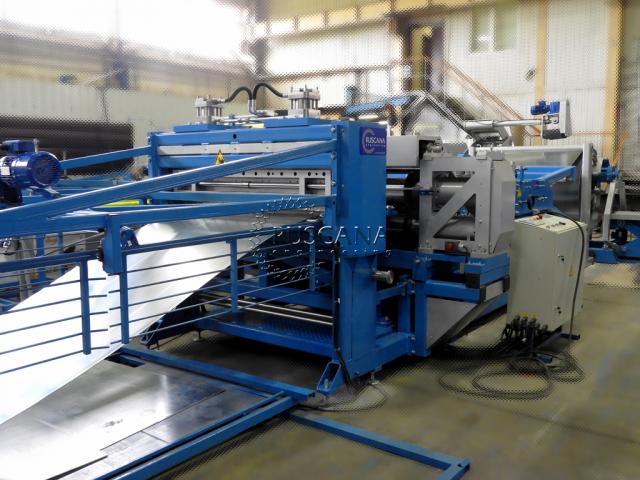

In June, Group of companies «Ruscana Engineering» manufactured cut to length and slitting line for processing metal coil with thickness 0,4-3,0 mm.



This equipment was manufactured taking into account the most advanced developments and achievements of the company in the field of slitting metal coil, has the characteristics of high-production equipment and will be the best choice for your business.



The distinctive features of this line are:



Easy-to-use electronic ruler, in times simplifies the process of setting knives at a specified width.



Bonded Stripper Rings

This is a part of the instrument tooling of a slitting module, which is a rubberized ring, with a hardened steel core. The main function is to expel metal during the slitting process, thereby preventing it from sticking and ensuring it's broaching when slitting.



In view of the fact that this line is used for processing metal with thickness of 0.4 - 3.0 mm, a special attention was paid to the dense fixation and clamping of metal strips in the cutting zone of the guillotine.



The cut is straight and without jags.



To prevent unwinding of the metal strips, the ends of the strips  are securely fixed in the drum of the recoiler.



Feeding system of this line provides edge bending device before feeding metal into the line.



Metal coil with thickness over 1.00 mm being on the shaft of the decoiler has the property of unwinding.



The decoiler of this line is equipped with a powerful hydraulic clamping unit, which serves for clamping and securely fixing metal  preventing its unwinding.
