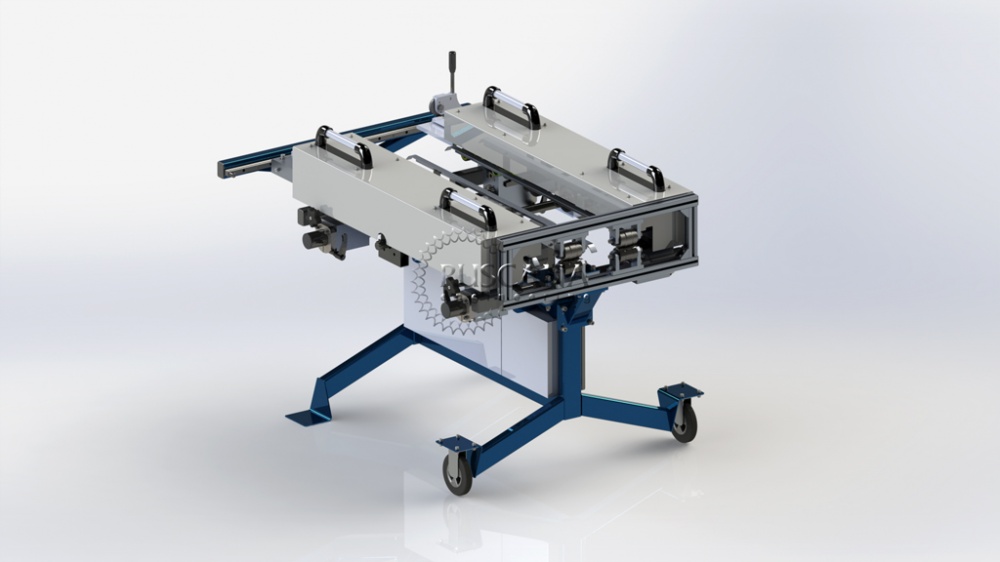

Standing seam roll forming machine PSR-005 manufactured by Ruscana Engineering allows to produce high quality roof panels with classic standing seam of various widths and lengths from coil steel, copper and zinc-titanium right on a construction site as well as at a manufacturing facility.
Advantages of Portable Standing Seam Roll former PSR 005:
1.High quality roll-forming
2. Panels of various shapes.
PSR 005 allows to produce standing seam panels of various shapes: trapezoidal, angular, rectangular.
3.Mobility
Manually and without much difficulty could be disassembled into 5 parts: a frame № 1, two profiling units № 2,3, a transverse mechanical knife № 4 and embossing roller dies № 5.
It makes possible to transport machine on almost all types of vehicles.
Due to light weight of the units, the process of it's moving at the construction site is carried out using handles without additional lifting devices. The assembly time of the machine is 5 minutes.
4. ATAS system
The automatic adjustment system for various metal thicknesses ATAS allows to roll-form metal without manual adjustment of it's thickness from 0.45 up to 0.8.
5. Standing seam panel of 2 typical sizes
PSR 005 allows to produce standing seam panels of 2 sizes: 1 inch and 1.5 inch by replacing profiling units. It takes 2 minutes.
6. Adjustment of roll-forming unit accordingly to required coil width is carried out manually by moving profiling units.
7. Profiling rollers are made of heat-treated high quality steel and have a long service life.
8. High roll-forming speed
High roll-forming speed up to 12 m \ min allows to use machine not only at the construction site but also in the workshop.
9. Embossing unit “Trapezoidal” and “Half-round”
Embossing provides panels with additional rigidity and aesthetic appearance.
Custom made embossing is available.
10. Safety
The protective covers of the profiling units ensure safe operation.
11. Decoiler
Provides stable feeding of the metal of various widths.
The movable stopper securely fixes the coil.
12. Cutting tool
Quality cutting of the required length.
12. Box for storage spare parts and tools.
The necessary tool kit is always at hand.
|
Raw material requirements |
|||
| Panel profile | Coil width | Material | Thickness |
|
SS-100 |
14,9"(379 mm)… 26,9" (684 mm) |
Galvanized steel with mass of zinc coating 100…275 g/m2 Yield strength 280…320 N/mm2 |
0,45 mm… 0,7 mm |
|
SS-150 (option) |
15,9"(404 mm)… 27,9"(709 mm) |
Galvanized steel with polymer coating: polyester, plastisol Yield strength 280…320 N/mm2 |
0,45 mm… 0,7 mm |
|
Copper, aluminum, zinc-titanium |
0,7 mm…0,8 mm | ||
|
Characteristics of the final product |
|||
| Panel profile | Seam height | Panel width | |
|
SS-100 |
1" (25,4 mm) |
12" (304,8 mm)… 24" (609,6 mm) | |
|
SS-150 (option) |
1,5"(38,1 mm) |
12" (304,8 mm)… 24" (609,6 mm) | |
|
General characteristics |
|||
| Installed power capacity, no more than | 1х0,75 kW | ||
|
Power supply voltage at frequency of 60 Hz, 115/208-230 V Note: All electrical parameters should be item for discussion before request. |
|||
|
Dimensions (LxWxH) |
1710х1110х1120 mm |
||
|
Weight |
325 kg |
||
|
Roll forming speed, no more than |
12 m/min |
||
|
Temperature operating mode of the equipment |
+35°– 10 °С |
||
|
Adjustment of the equipment to the desired width of the profile is carried out by manually moving the profiling units relative to the marked center. |
|||
|
Required operating personnel |
2 persons |
||
|
Demounted into 5 parts for transportation |
Frame Two profiling units Transverse knife Embossing roller dies with hanger arm |
||
|
Configuration: 1. Standing seam roll forming machine PSR 005-02 2. Transverse knife 3. Embossing roller dies “Trapezoidal” or “Half round” with hanger arm Should be specified when ordering |
Layout
|
